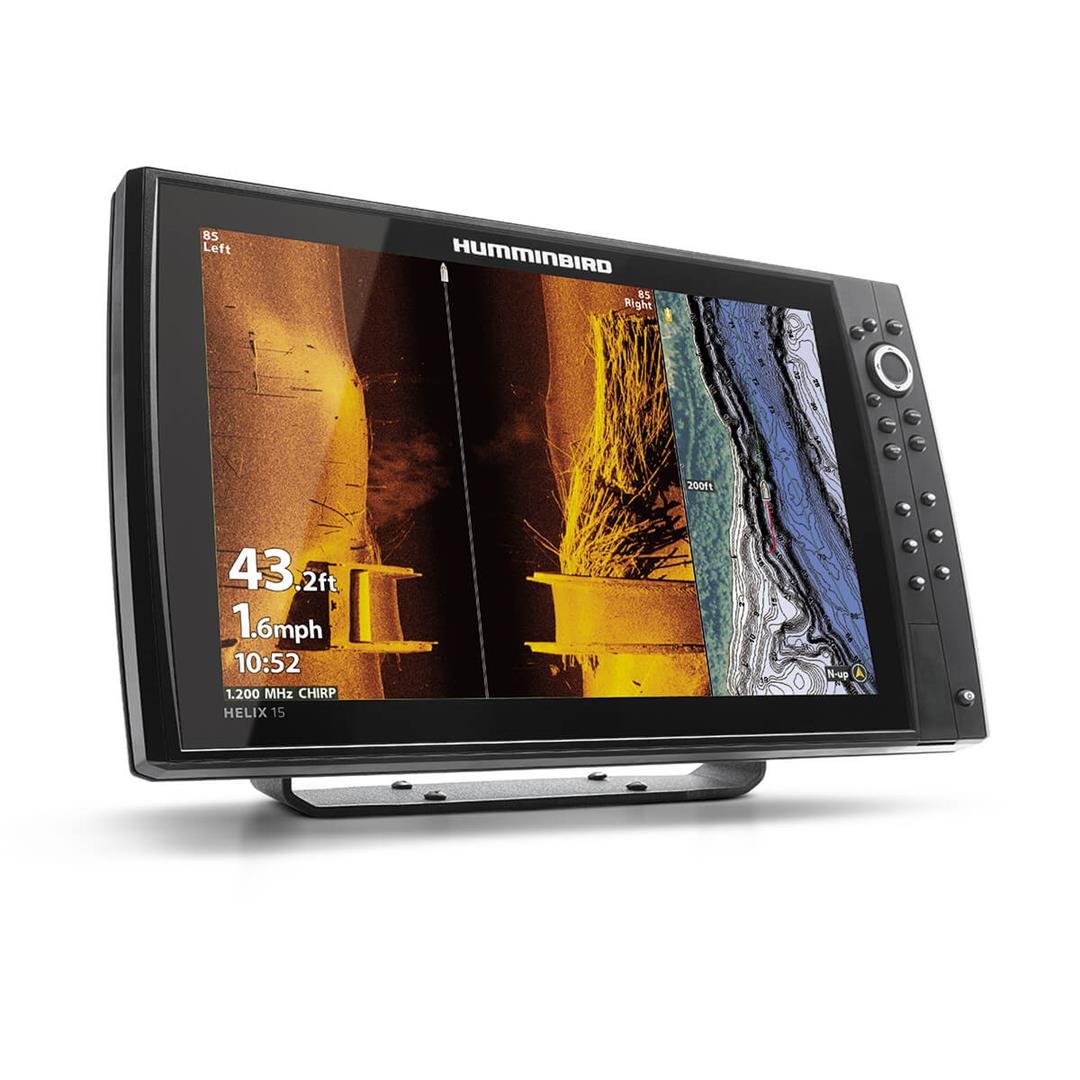

Humminbird HELIX 15 CHIRP MEGA SI+ GPS G4N Fishfinder

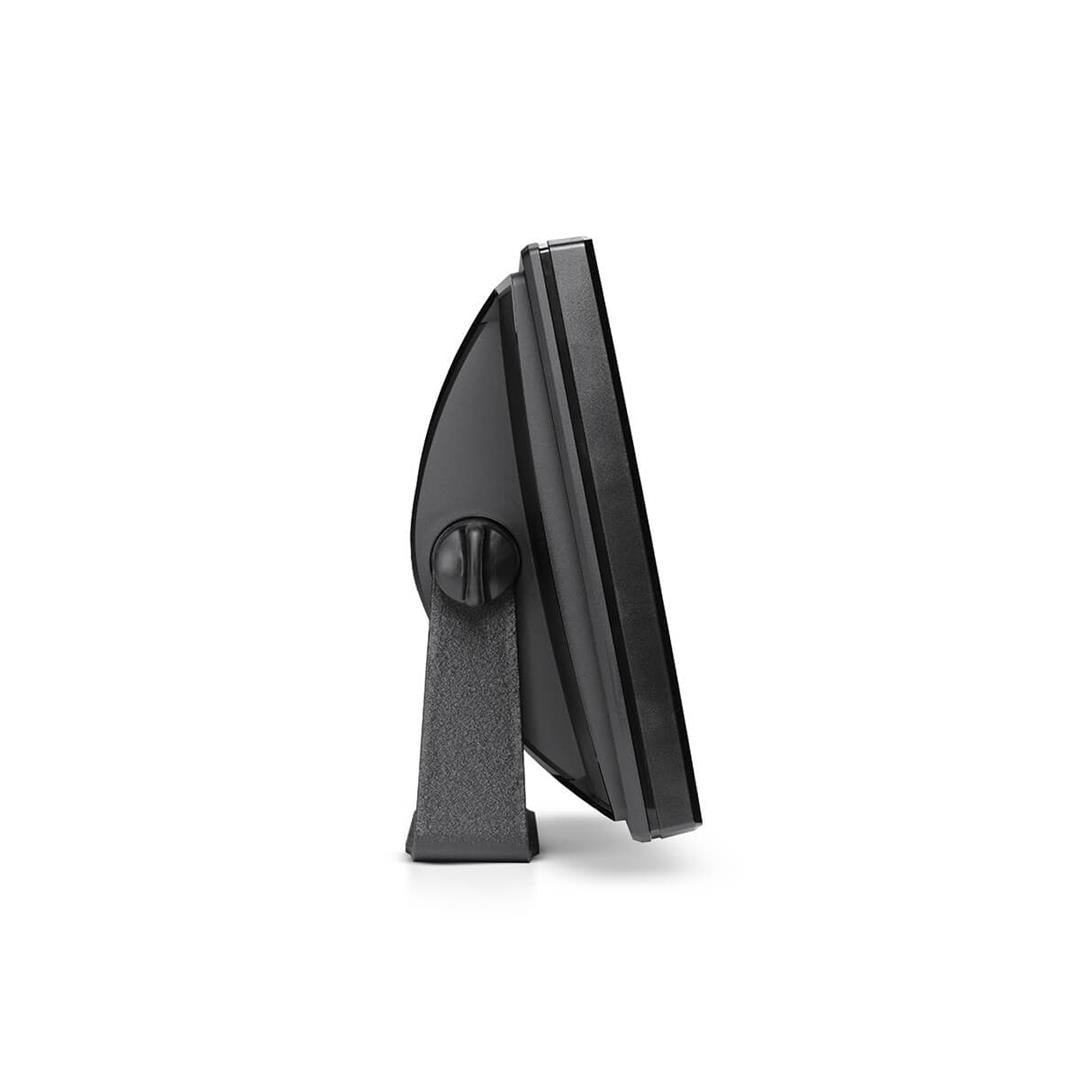

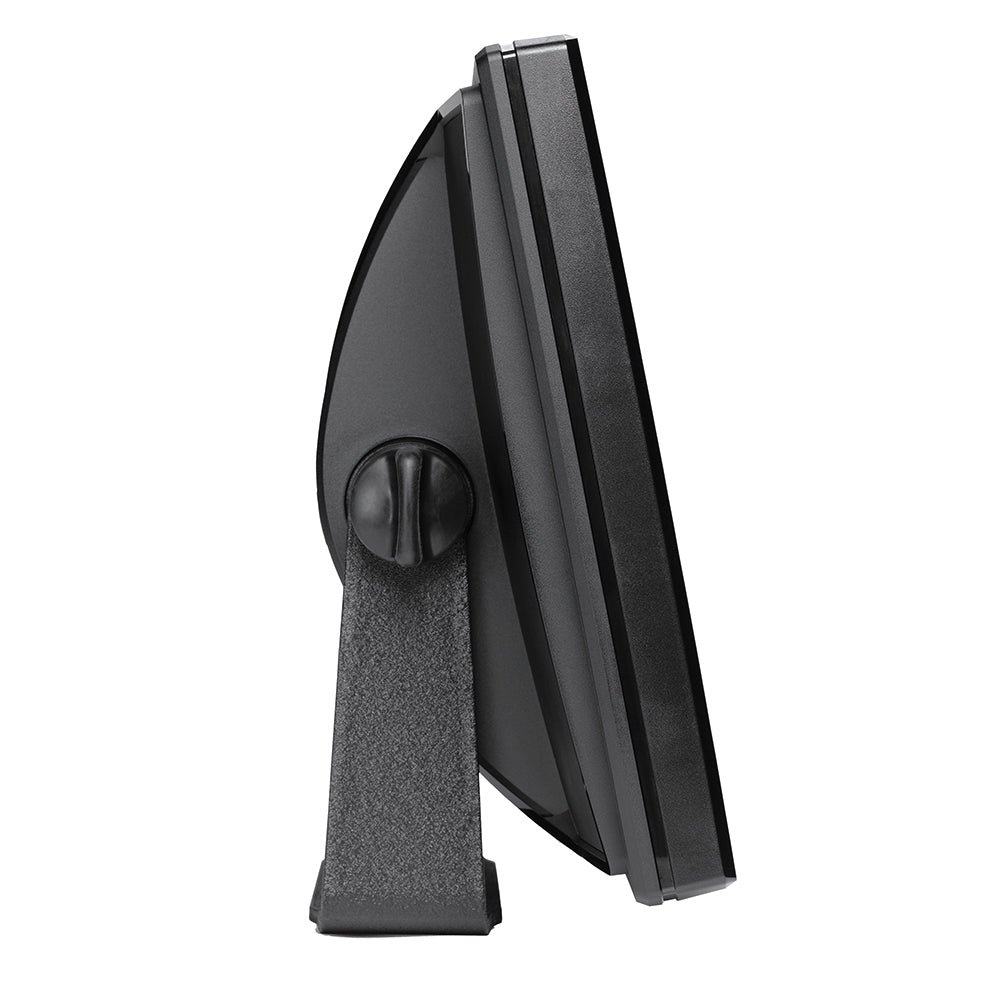

The HELIX 15 CHIRP MEGA SI+ GPS G4N head unit, the XM-9-HW-MSI-T transom-mount transducer with mounting hardware, the gimbal bracket, the power and data cabling, the protective sun cover, and the install / operation manual. The flush-mount kit is sold separately for installs that want a clean dash-flush appearance.

HELIX is the keypad-controlled mid-tier Humminbird MFD line. SOLIX is the touchscreen flagship with Cross Touch interface, brighter optical-bonded display, and a faster processor. HELIX runs the same MEGA Imaging and Dual Spectrum CHIRP sonar features as SOLIX but on a less expensive platform with simpler keypad controls. For owners who prefer the reliability of physical buttons over touchscreens (especially in wet, salty, or rough conditions), HELIX is the deliberate choice. For owners who want the most capable Humminbird platform regardless of cost, SOLIX is the step up.

The plus generation delivers 200 feet of side-scan coverage on each side with 20 percent more detail and 60 percent more range than the older MEGA Side Imaging. Same MEGA frequencies (around 1.2 MHz), refined transducer and processing for better imagery and reach. If you have an older MEGA SI unit and you're upgrading to a HELIX 15 G4N, the MSI+ improvement is genuinely noticeable in the imagery quality.

Yes, no touchscreen. All control via the soft keys and dedicated buttons on the right side of the bezel. Some users prefer keypad control because it's reliable in wet conditions where touchscreens become unreliable (your fingers covered in fish slime, the screen wet from rain or spray, etc.). Others prefer the convenience of touchscreen interaction. If touchscreen is important to you, look at the SOLIX line.

Humminbird Basemap (built in, covers more than 10,000 freshwater lakes plus coastal coverage), LakeMaster lake-specific charts, CoastMaster nearshore and coastal charts, AutoChart Pro for custom mapping, plus Navionics+ and Navionics Vision+ for the Navionics ecosystem. SD card slot accepts any of those formats. Drop the right chart card in for your fishing area and you have full coverage.

The Humminbird ecosystem that ties together compatible Humminbird fishfinders, compatible trolling motors with One-Boat Network capability, and Cannon downriggers into one integrated control system. Set spot-lock from the HELIX, control downriggers based on the waypoint, share data across multiple devices. For tournament boats running the full ecosystem, the integration is a major productivity feature. For owners running standalone Humminbird without trolling motor or downrigger integration, the One-Boat Network features just sit unused.

Yes, with the Humminbird Ethernet switch (sold separately, AS-ETH-5PGL or AS ETH 5PXG). Connect multiple HELIX or SOLIX displays via the Ethernet switch and they share sonar, charts, waypoints, and routes across the network. Common config for serious tournament boats: HELIX 15 at the helm, smaller HELIX or SOLIX at the bow for the trolling-motor angler, both networked.

The HELIX 15 G4N supports MEGA Live live-scanning sonar via the Humminbird Ethernet network. Connect a MEGA Live transducer and module to the network and the HELIX displays the live-scanning imagery. For serious bass and walleye tournament fishing, MEGA Live plus MEGA SI+ is the modern dual-sonar setup.
